Flex Automated Pellet Series Outdoor Furnaces
The Flex Series combines efficient biomass heating with an advanced automated fuel hopper designed to dramatically reduce the need for frequent loading. Depending on heating demand, fuel type, and outdoor temperature, the large-capacity hopper can provide heat for several days to weeks between refills—making it an ideal solution for homeowners who travel, work away from home, or simply want less hands-on heating.
Why Choose A Flex Series Stove?
Heat for Days, Not Hours

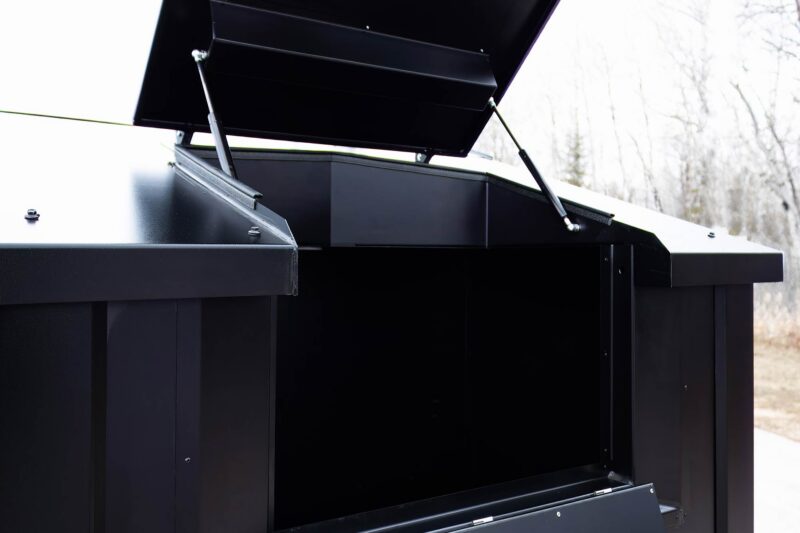

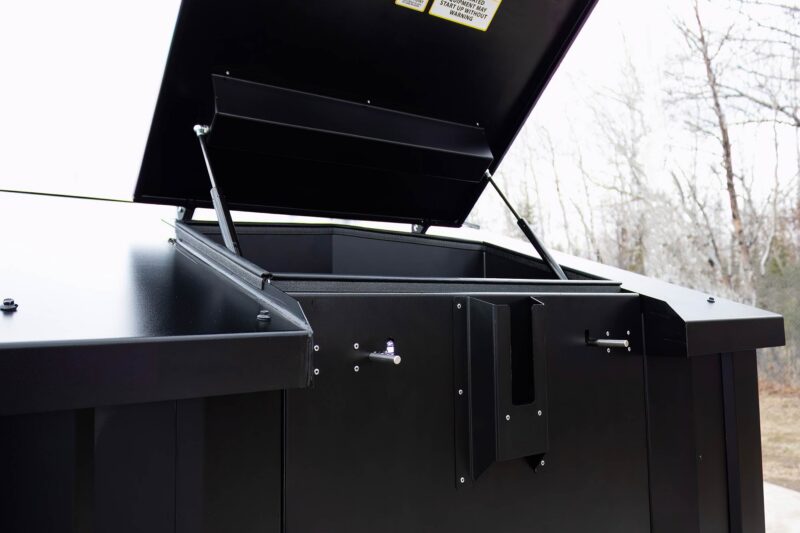

The large-capacity hopper and automated fuel feed can provide several days to weeks of heating between refills, depending on heating demand, fuel type, and outdoor temperature.
Less Hands-On Heating

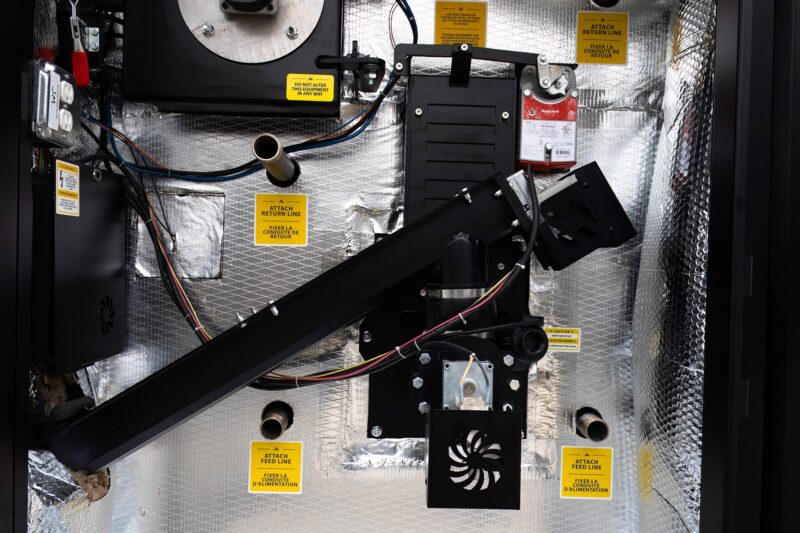

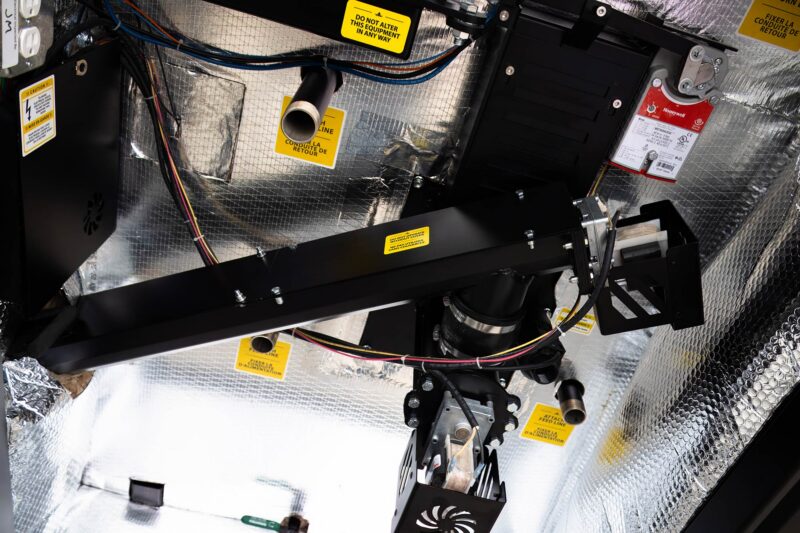

Automated fuel delivery and self-modulating airflow adjust to heating demand, reducing the need for frequent loading, monitoring, and manual adjustments.
Efficient, Cleaner Combustion
The Omni-O.2 combustion system distributes air around the fuel to support complete combustion and secondary gasification for efficient, cleaner-burning heat.
Convenience and Sustainability
Combines the efficiency and eco-friendliness of biomass heating with the ease and automation of a modern system—delivering dependable warmth without the labor of traditional wood-burning methods.
Flexible Heating Capacity
Sized for residential heating but can also extend heat to additional buildings or support select commercial applications.
Confidence for the Long Haul

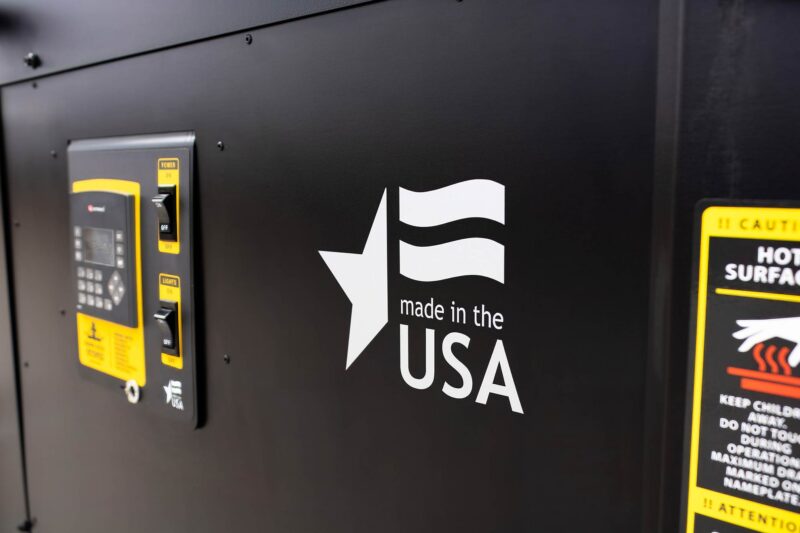

Combines USA-manufactured 409 Titanium Enhanced Stainless Steel construction with a 20-Year Limited Warranty for lasting confidence in your heating investment.

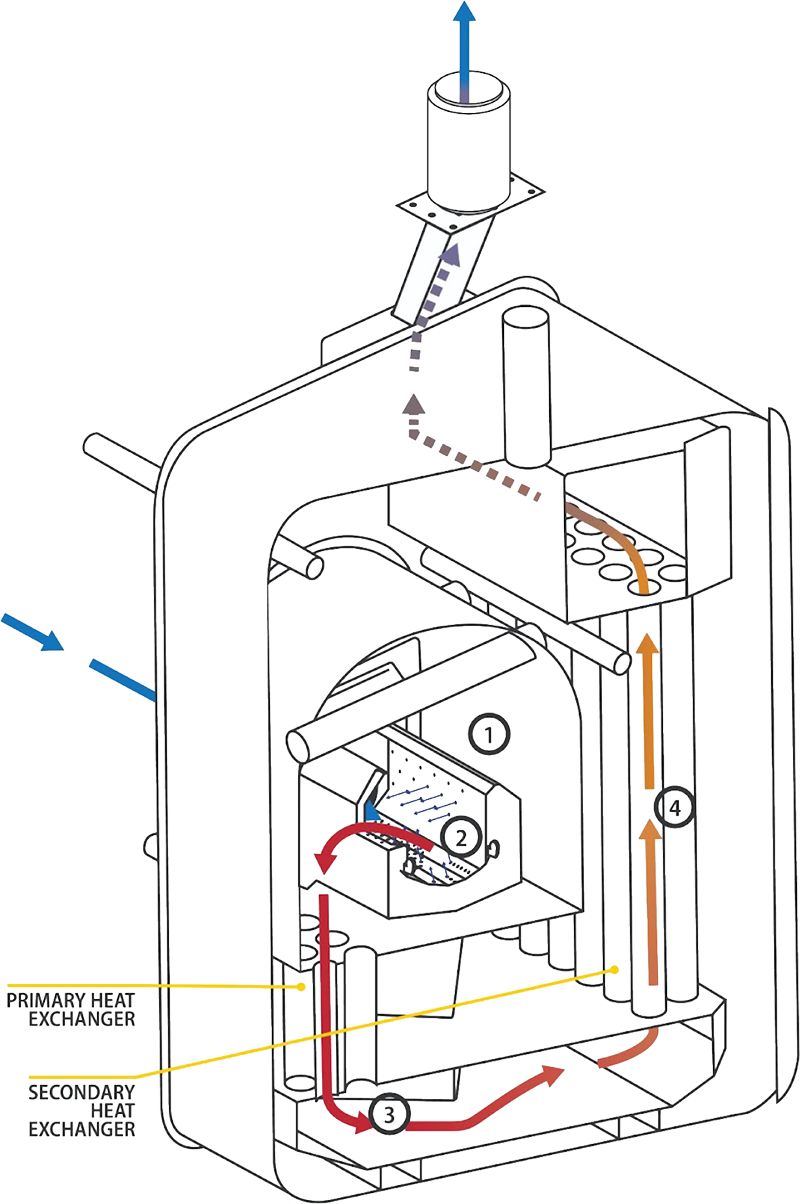

How it Works
Residential Homes
Provide dependable, automated heat for single-family homes, with extended burn times that reduce the need for frequent refueling.Pools/Hot Tubs
Outdoor wood heating can help provide an efficient source of heat for recreational water applications.Domestic Hot Water
Provide hot water for homes and other properties with compatible domestic hot water systems.Radiant In-Floor Heating
Deliver comfortable, even heat through radiant floors in homes, garages, workshops, barns, and other spaces.Greenhouses
Maintain consistent temperatures in greenhouses and growing spaces through cold-weather conditions.Garages and Workshops
Keep garages, workshops, and other workspaces comfortable without bringing the furnace or fuel handling indoors.Barns and Agricultural
Provide dependable heat for barns, outbuildings, and agricultural spaces, with the flexibility to extend heating beyond the primary home.Snow-Melt Systems
Provide heat for snow-melt systems designed to help keep driveways, walkways, and other outdoor surfaces clear during winter.Commercial Spaces
Heating to support smaller businesses, offices, and other commercial spaces.

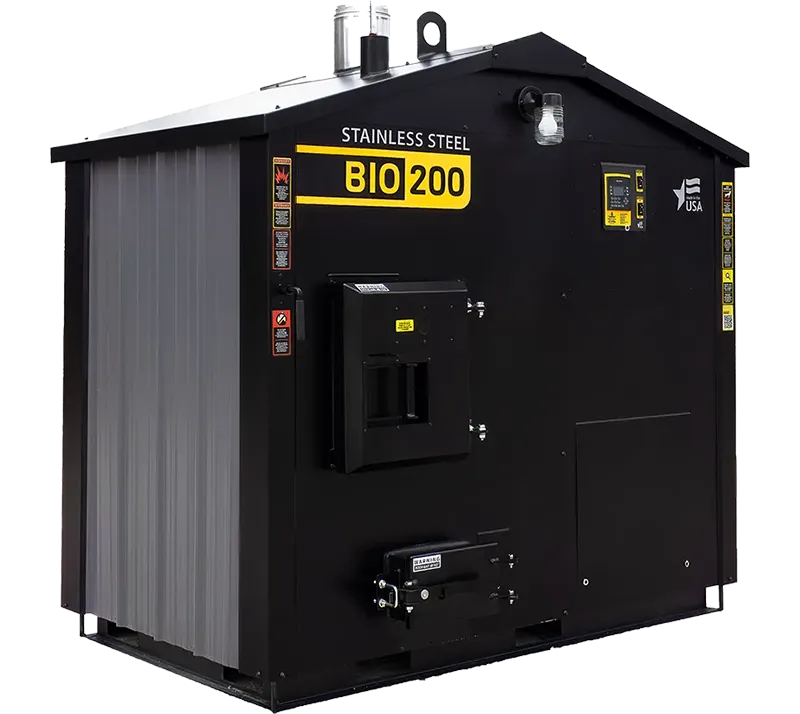

Flex Series |
|
|---|---|

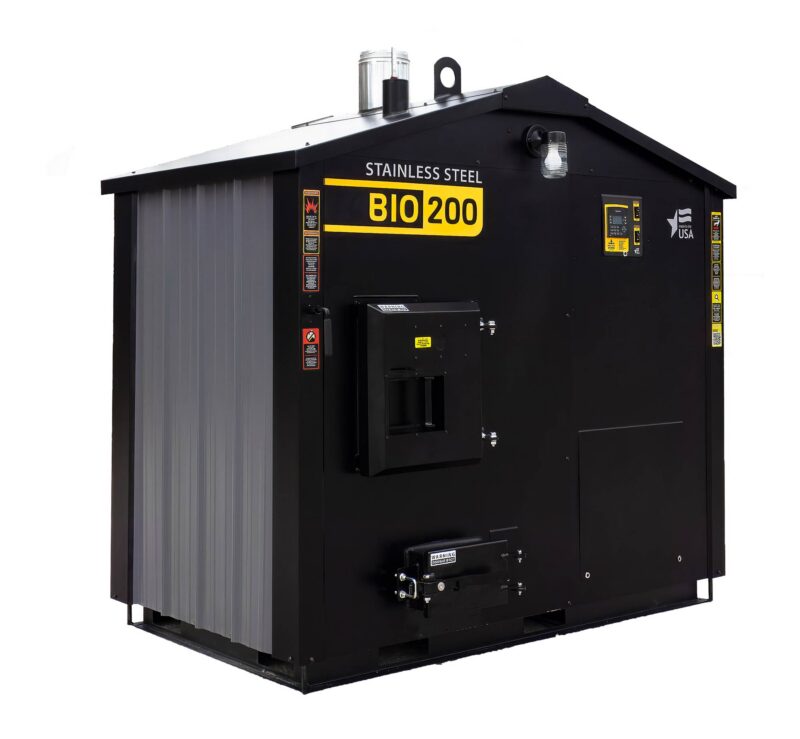

| Model | Bio200 |
| Estimated Weight | 2,250 LBS (Empty) |
| Heat Output Range | 20,000 - 212,000 |

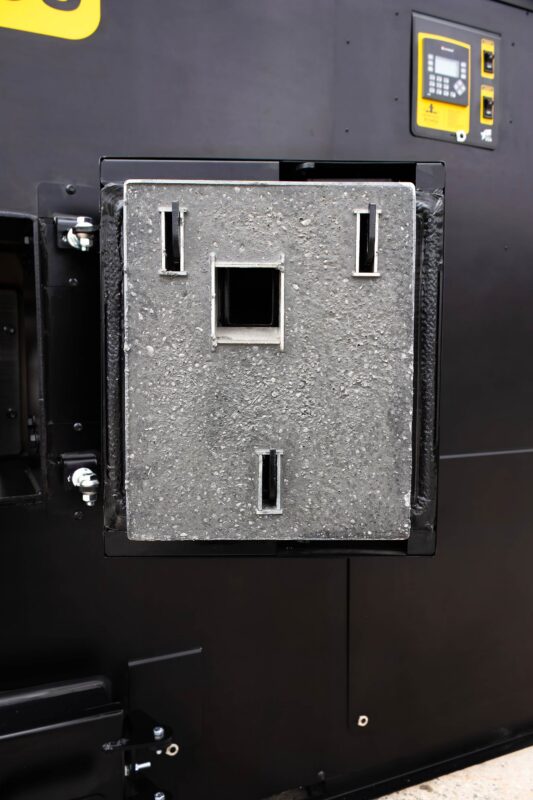

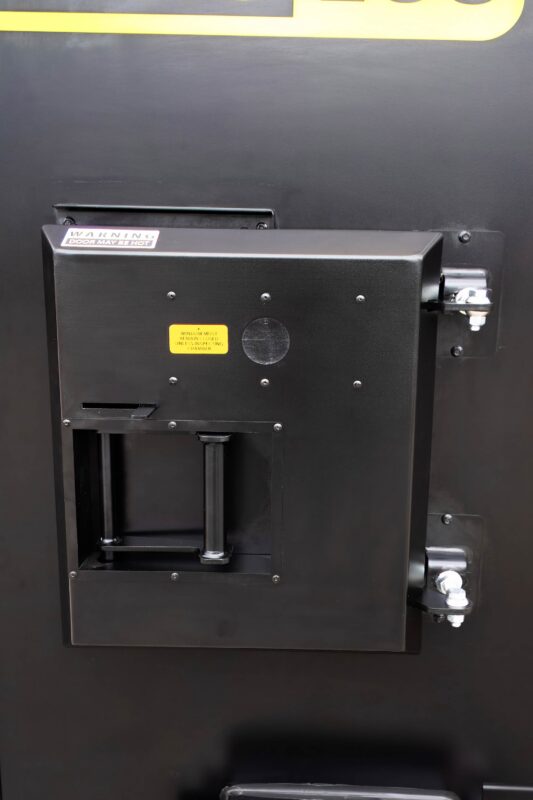

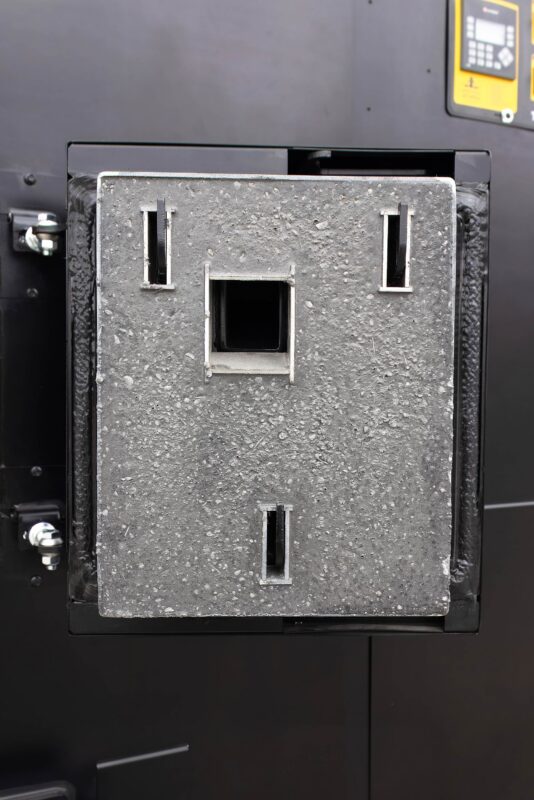

| Firebox Door Size | 16” x 16” |
| Chimney Size | 6” |

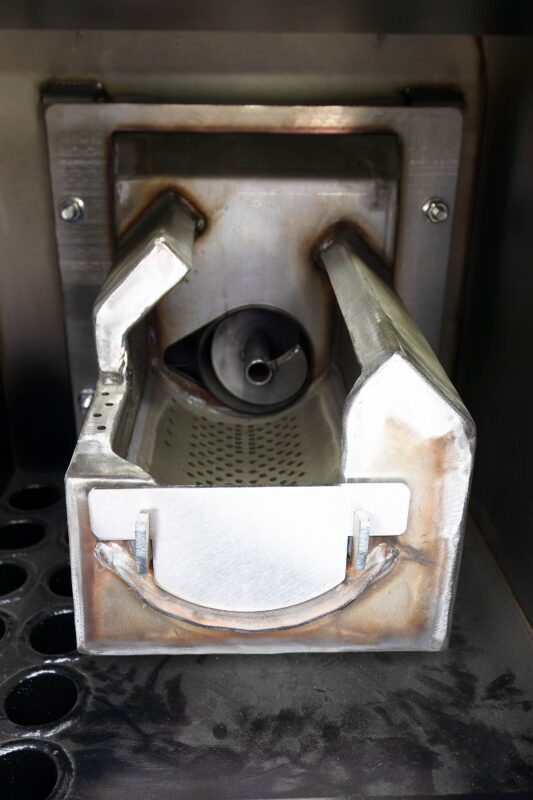

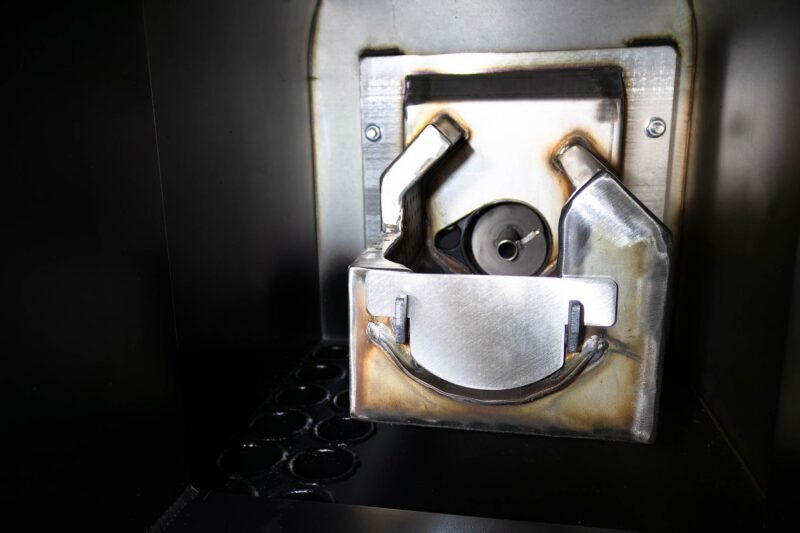

| Burn Pot Size | 12.75” x 7.5” x 8” |
| Supply Size | 1-1/4” |
| Return Size | 1-1/4” |

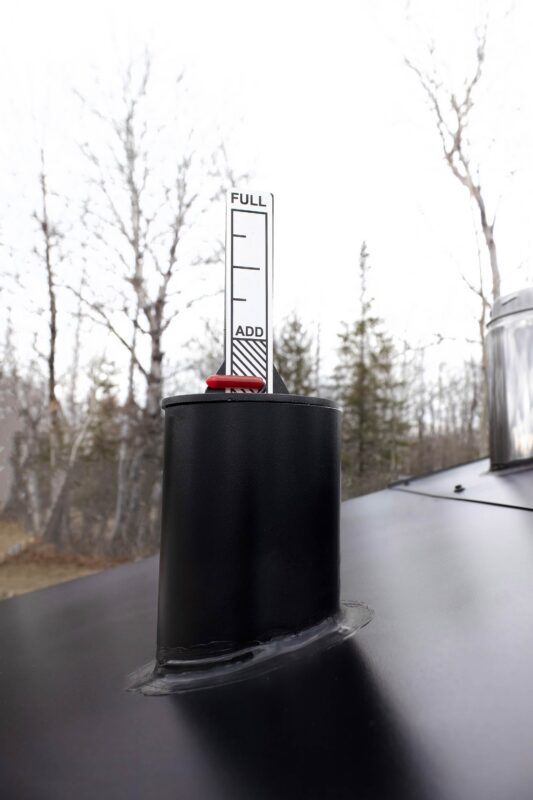

| Water Capacity | 135 Gallons |
| Fuel Capacity | 1,400 LBS (with augers full) |
| Approximate Sq Ft | 5,000 |
| Approximate BTU'S | 20,000 - 220,000 |
| EPA Certified | Yes |
| Efficiency LHV | 96% |
| HHV | 89.2% |
| Electrical Rating | 20 Amp |
| Average Emissions Rate | 0.079 lbs/mmbtu |
| Maximum Emissions Rate | 0.087 lbs/mmbtu |
| Annual Efficiency Rating | 89.2% |
Get Product Pricing
Ready to explore your options? Get pricing information for our core consumer products to help you compare solutions and plan your next step. Enter your email to access the guide.
Can the Bio 200 replace an existing Outdoor Wood Boiler?

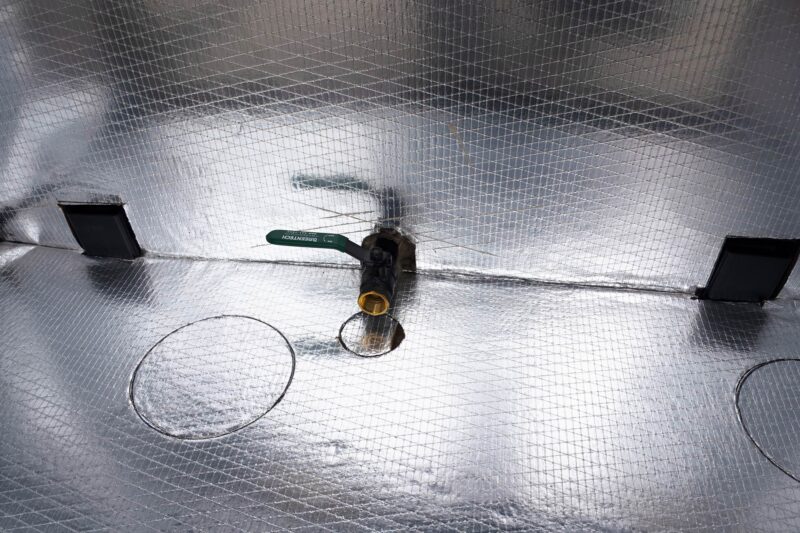

Yes, the Bio 200 can replace an existing Outdoor Boiler. The Bio 200 can be set on a pad in multiple orientations with the added floor knock-outs on the sides and rear of the unit.
How long can I burn a Bio 200 before I need to clean it?

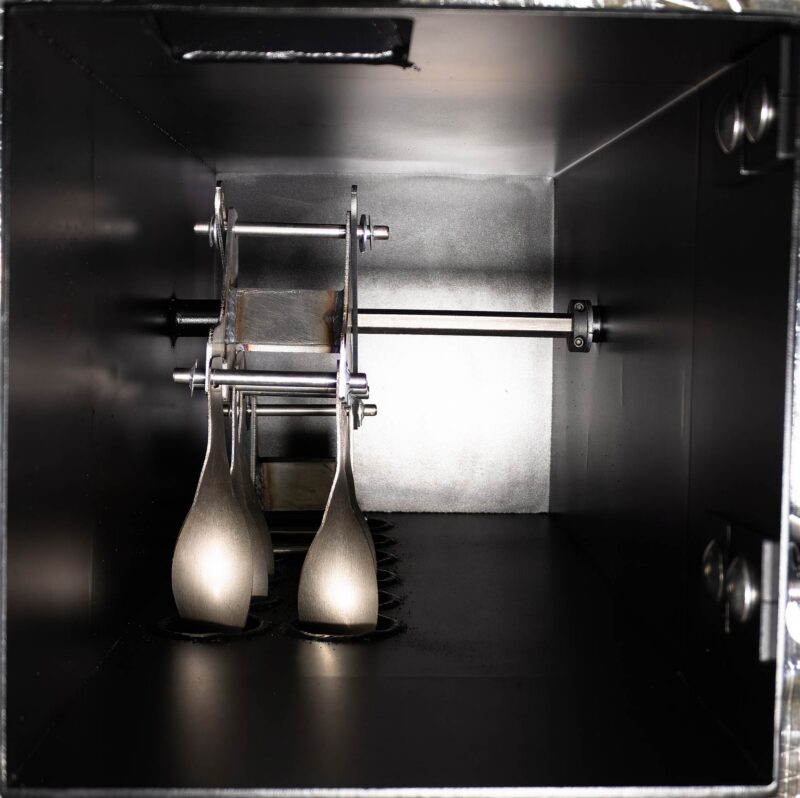

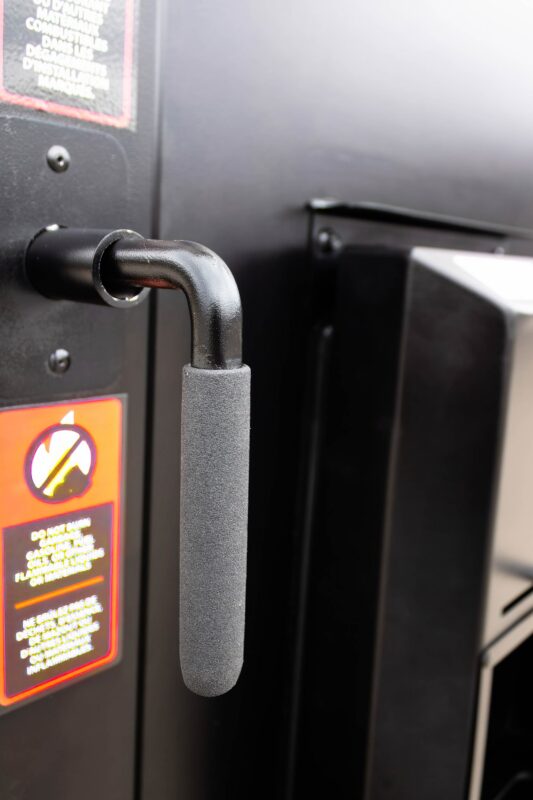

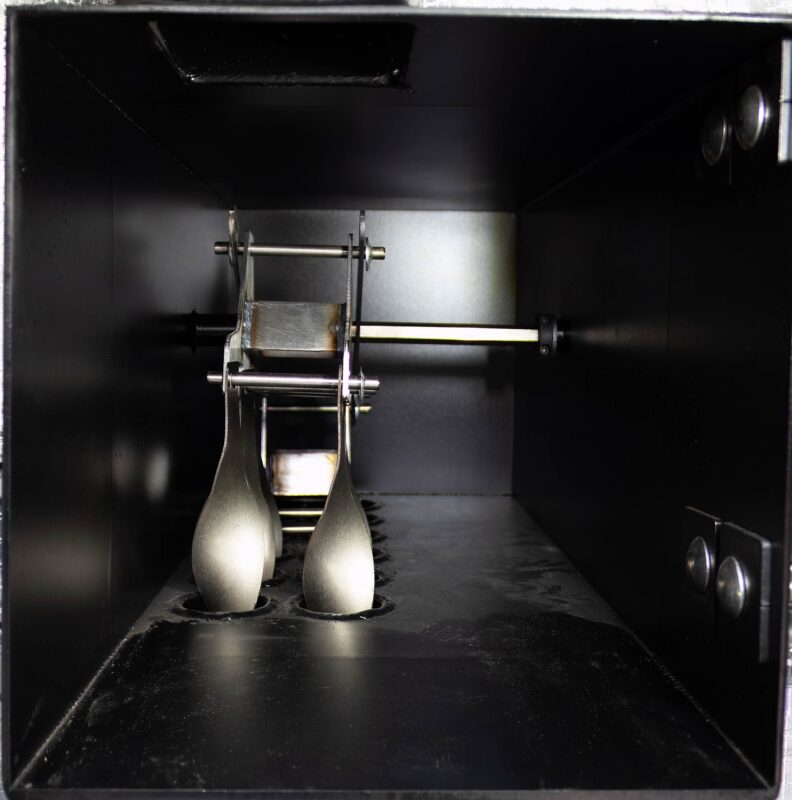

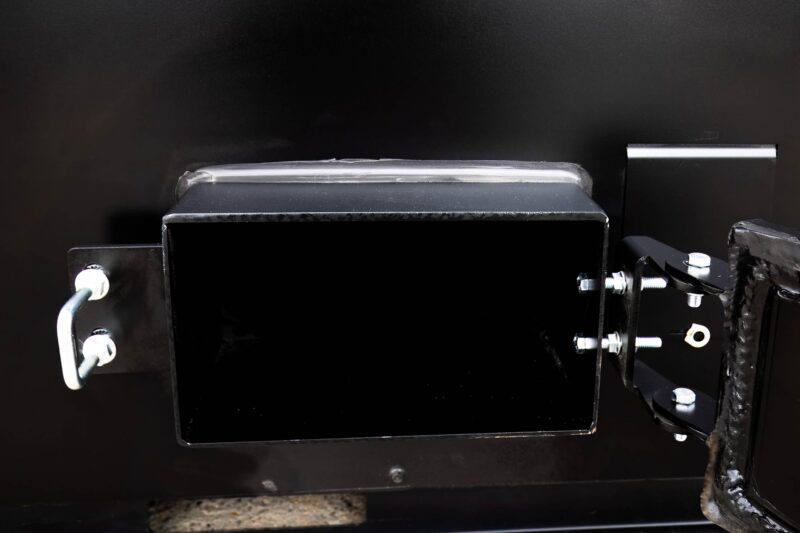

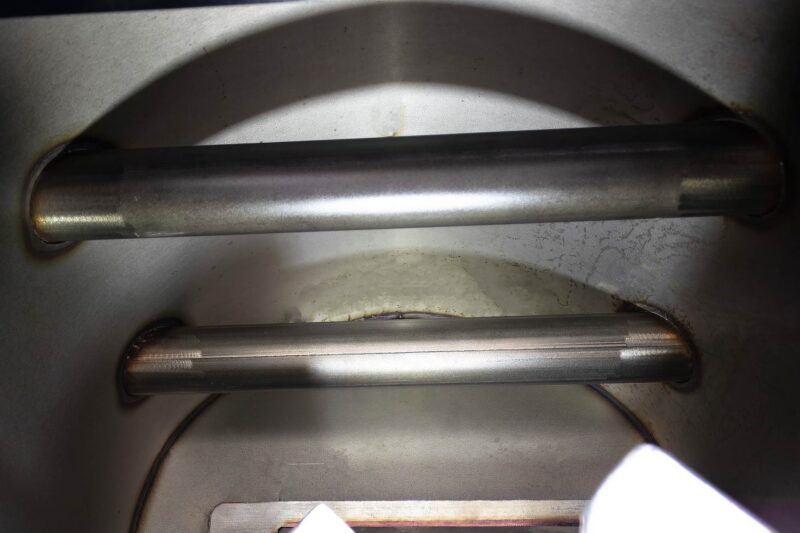

It is recommended to clean the ashes out of the Bio 200 weekly. Cleaning the Heat exchange tubes greatly increases the efficiency of the Bio 200. The Bio 200 will come with an assortment of cleaning tools.
Do I have to have glycol or anti-freeze in the boiler?
No, Crown Royal Stoves does not require the use of glycol in their boilers. If Glycol is used, the recommended ratio is 35-40% of glycol to water. This must be a propylene glycol specifically formulated for heating applications. Crown Royal stoves requires the use of "Control" rust inhibitor. This can be purchased from a Crown Royal Stoves Dealer.
Can I use the same underground PEX lines as my existing outdoor unit?
Yes, however it is highly recommended to replace old lines with new to ensure maximum efficiency and avoid cool return temperatures.
Can the Bio 200 work with an existing heating system?
The Bio 200 can be used with just about any existing heating system such as: forced air systems, hydronic sytems, radiant infloor & baseboard. The Bio 200 can also be used to heat domestic hot water.
How long can the Bio 200 run before needing to be refilled.
Depending on fuel quality and heating load, with the hopper and augers full of fuel, you can go days to weeks before needing to refill the fuel hopper.
What kind of wood pellets can I use in the Bio 200?
Use only top-quality, residential grade A wood pellets for best performance. Top quality wood pellets have a moisture content under 10%. The Bio 200 can burn both soft & hardwood pellets.
Why should I use only top-quality grade A wood pellets in the Bio 200?
Grade A wood pellets have a lower moisture content, produce less Ash meaning less cleaning. Grade A wood pellets also have a higher energy density, reducing the amount of wood pellets needed & less refueling.
Will adjustments be needed to any control settings on the Bio 200?

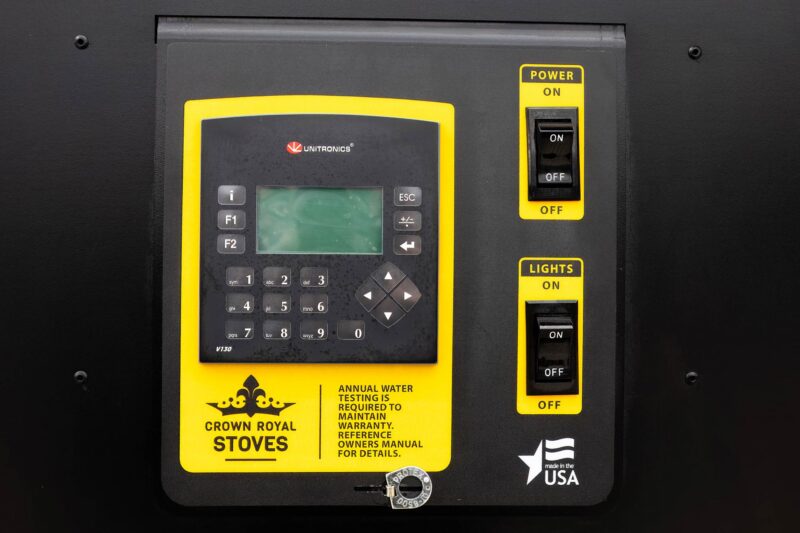

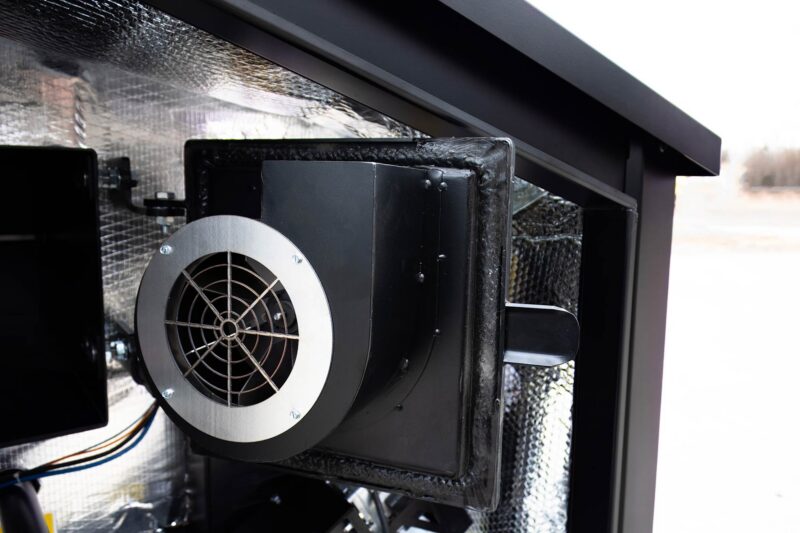

The Bio 200 comes with a preset temperature set point of 180 Degrees F with a 10 degree temperature differential meaning no adjustments are needed. The Bio 200 features a self-modulating draft inducer and augers automatically adjust both airflow and pellet feed rates. If poor quality pellets are used, manual adjustments on the controller may need to be made to the feed rate and fan speed.
Do I have to build a fire to start the Bio 200?
No, the Bio 200 has an automated ignition system provides rapid, ultra-reliable fire startups without the need for manual lighting.
